Product introduction

The Shanjiang Derun maintenance crane can be installed on the top of nacelle of wind turbine generators (WTG for short) without changing the nacelle structure, and the crane can operate normally on existing wind turbines, easily installed to various wind turbine generators.

The maintenance crane adopts the modular design, which can be flexibly installed and dismantled, and can quickly replace large and medium-sized components. Compared to other large-scale maintenance equipment, it can effectively save at least 10 times maintenance costs. In complex on-site environments, it can be carried to the work site by operator, greatly improving installation and reducing installation costs. Compact design, large capacity, make wind turbine maintenance more efficient and cost-effective!

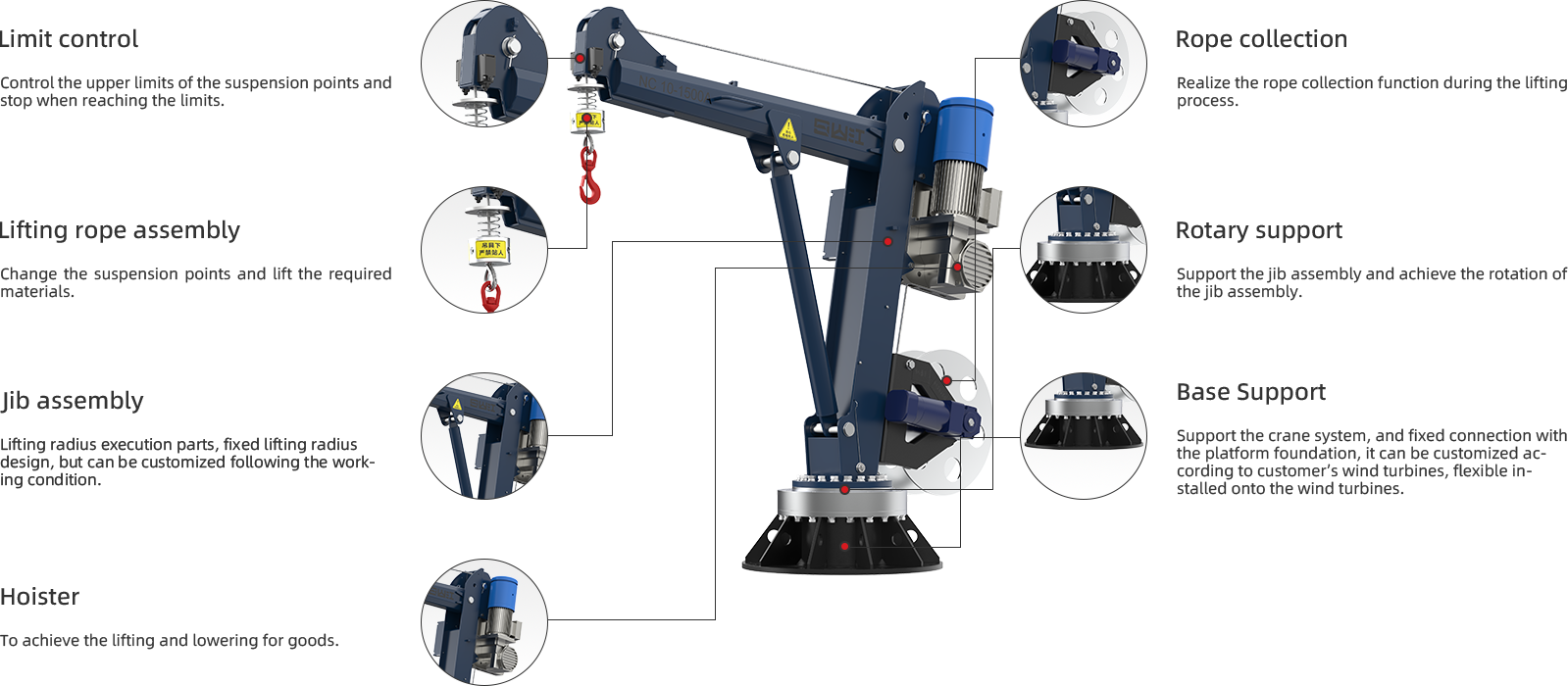

Product details
Product advantages
Product specifications
The basic design specifications of standard products are shown in the figure, which supports customized design following the actual needs of customers.

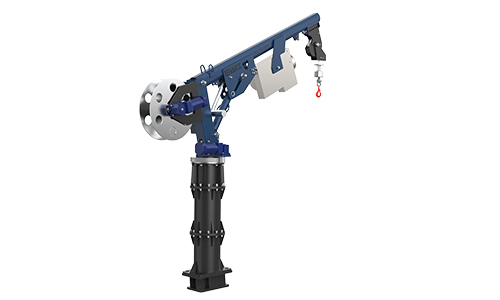

NC10-1500A


Product modelNC10-1500ARotation angle64°Rated power4kW
Lifting radius1m (customizable)Maximum lifting height150mService life25years
Maximum lifting weight1000kgWire rope diameterφ10.5mmDead weight of Crane40kg

Lifting speed

Double speed 9/18m/min

Working temperature-30℃~+60℃

Rotation control mode

Automatic typeRated voltage400V-50Hz/60Hz

NC10-1500


Product modelNC10-1500Rotation angle360°Rated power2.2kW
Lifting radius1.35mMaximum lifting height150mService life20years
Maximum lifting weight1000kgWire rope diameterφ10.5mmDead weight of Crane42kg
Lifting speed9m/minWorking temperature-30℃~+60℃

Rotation control modeAutomatic typeRated voltage400V-50Hz


*Parameters are only for reference, customized design following the actual use requirements.

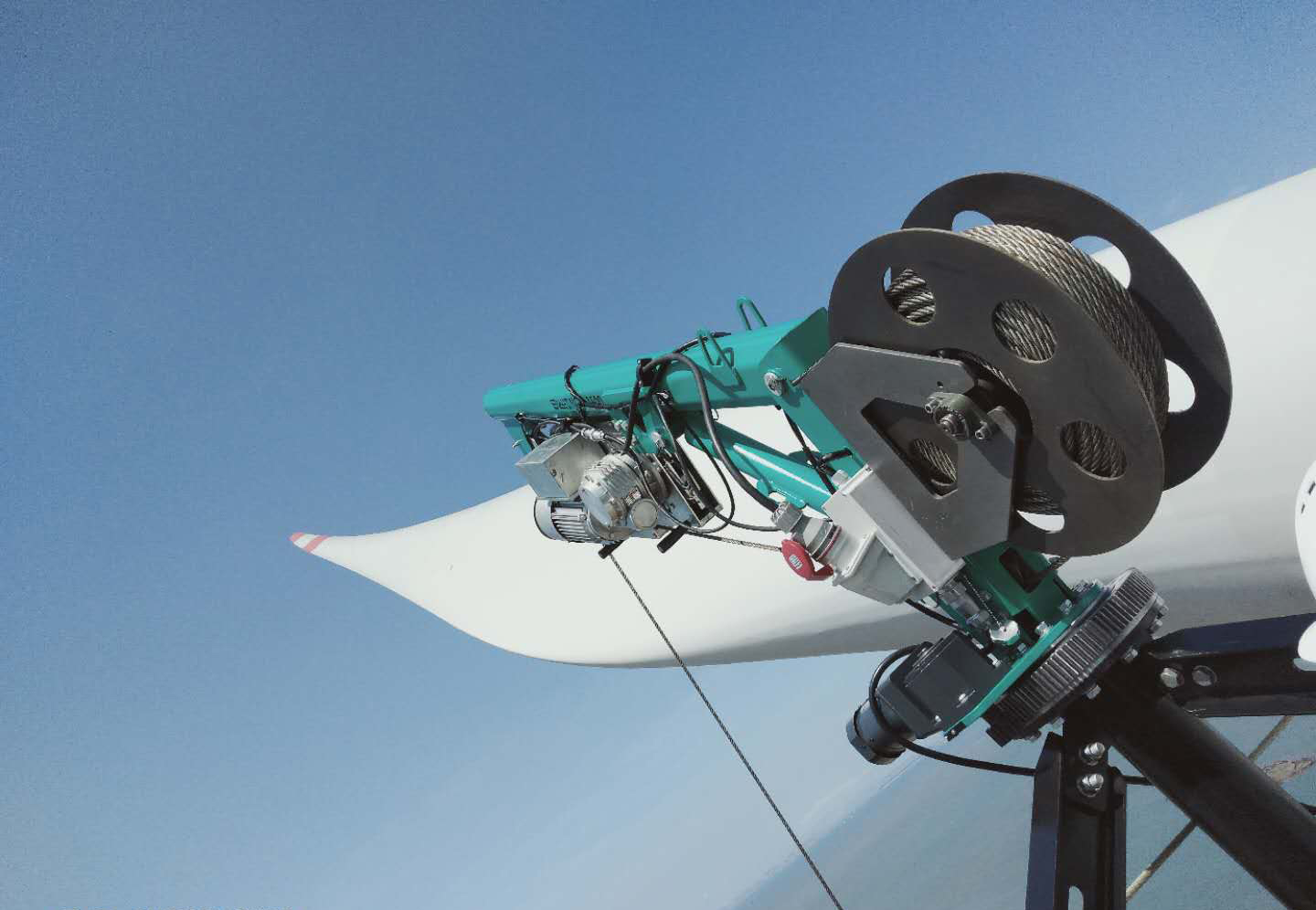

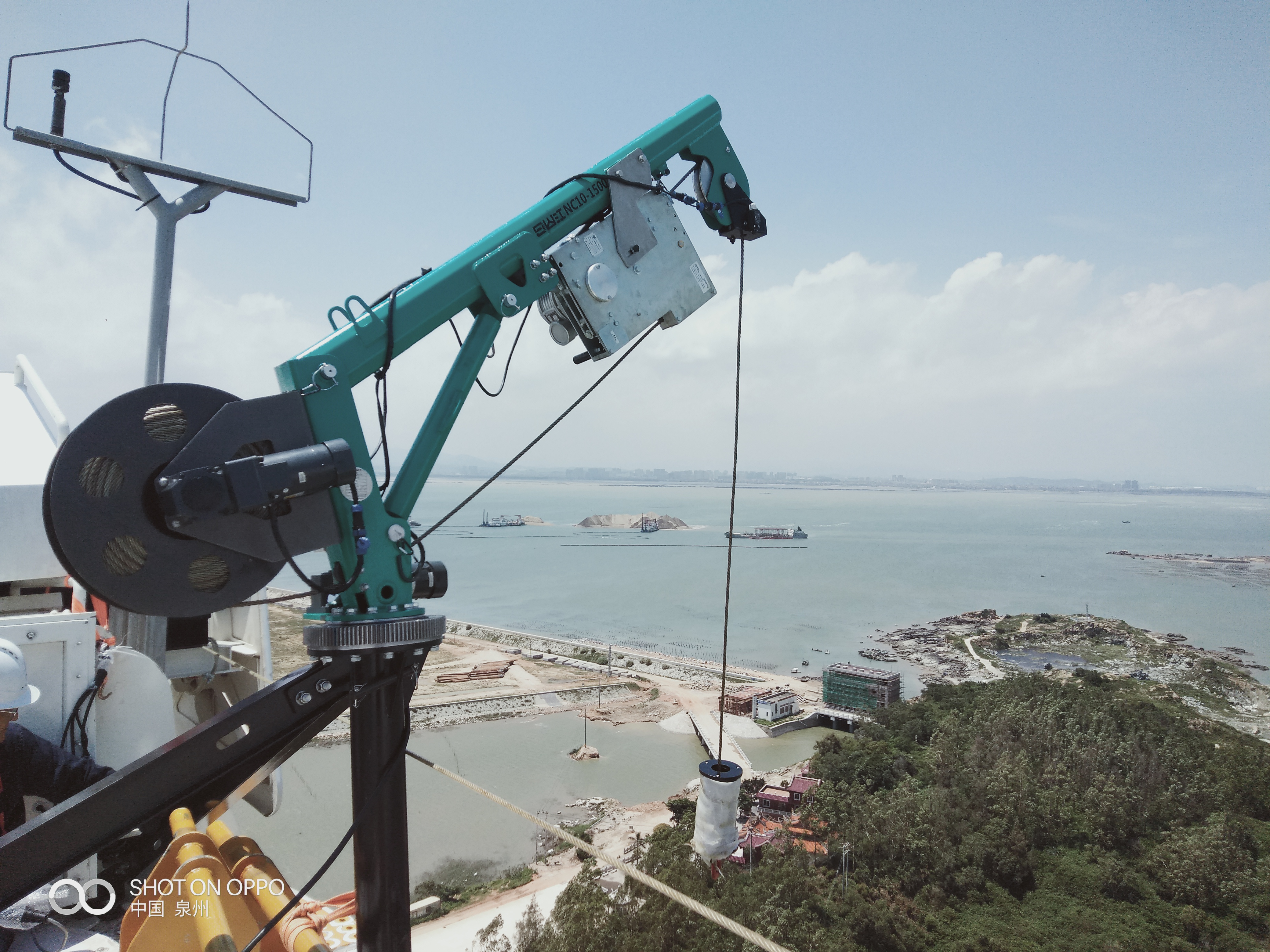

Application case

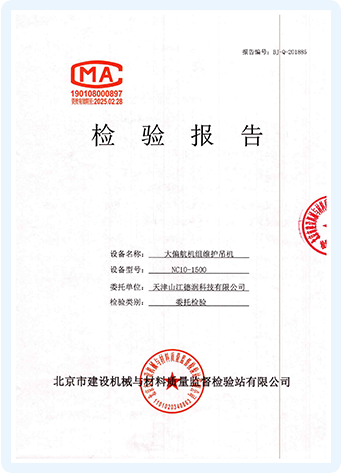

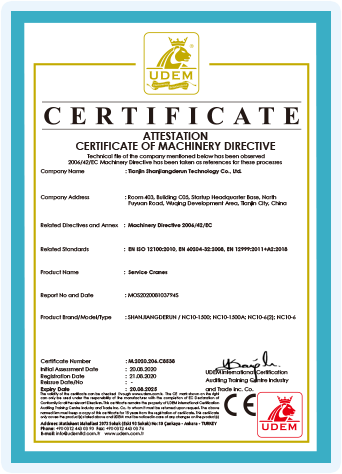

Qualification certificates
