Product introduction

Shanjiang Derun offshore crane is a kind of lifting equipment installed on the offshore working platform and the platform outside the wind turbine, which is used to lift the cargo and spare parts from the operation and maintenance ship. The crane can more accurately meet the needs of offshore material handling. Greatly improve O&M efficiency and effectively insure operation safety.

To meet the core requirements of safe and efficient offshore operations, the use of higher performance parts, corrosion resistance, high and low temperature resistance, easy to adapt to a variety of complex climates, ensuring that operators can still operate freely in the harsh marine working environment. With innovative technology, multiple protection systems, it fully considers the work safety, simple operation, easy lifting, support multi-scenario customized design, can meet the needs of various working conditions, effectively optimize the operation and maintenance experience. Good working environmental adaptability, even in harsh climates.

Product details

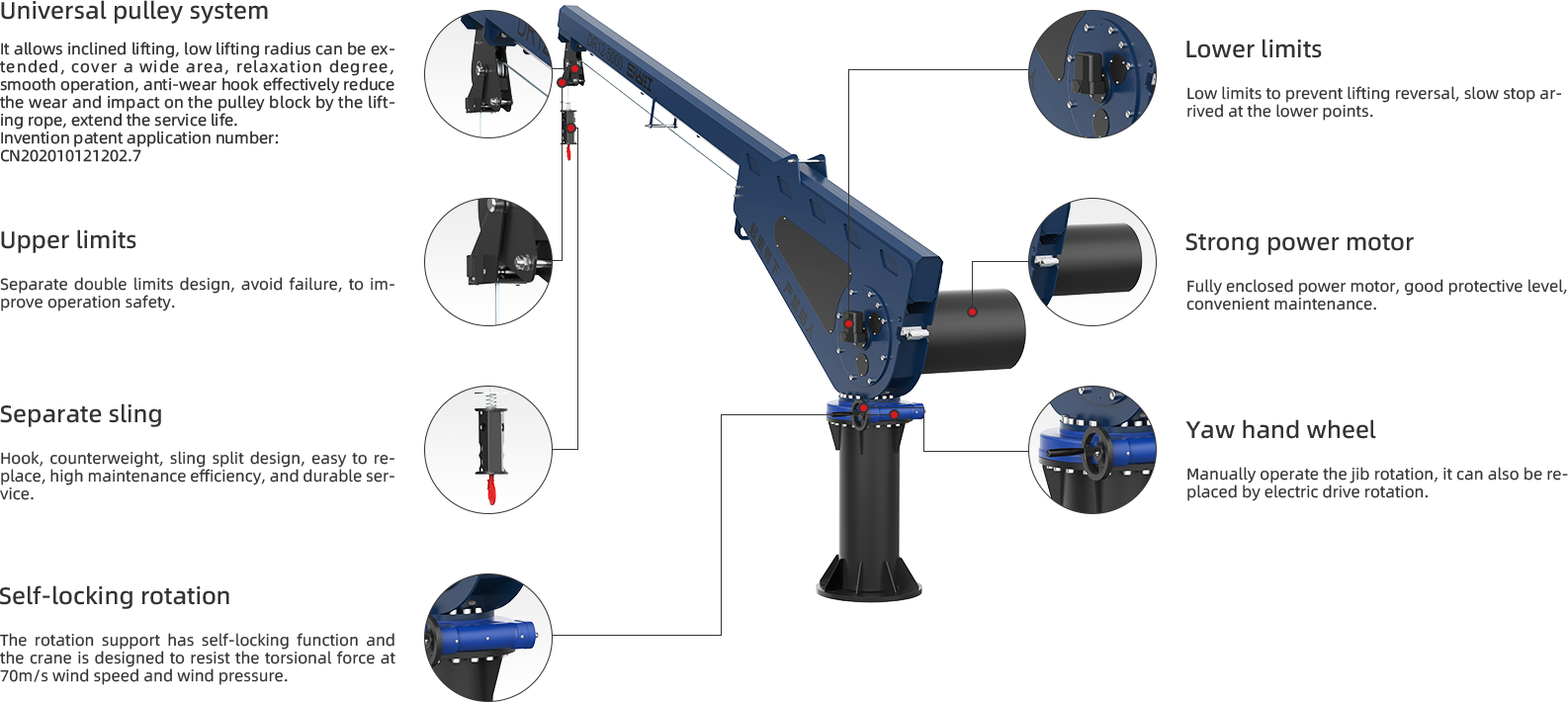

Product advantages
Product specifications
The basic design specifications of standard products are shown in the figure, which supports customized design following the actual needs of customers.

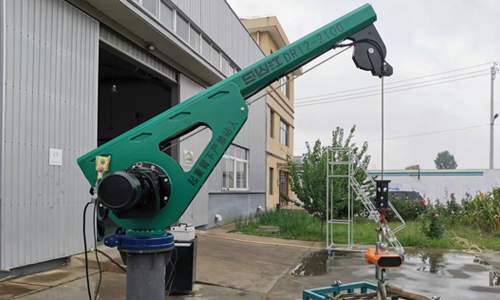

DR12-2100


Product modelDR12-2100Maximum lifting height30mService life25years
Lifting radius2.1m(customizable)Wire rope diameterφ12mmDead-weight of Crane900kg
Maximum lifting weight1000kgJib typeFixed/Tilted (customizable)Corrosion-proof gradeIndustrial Marine environment CX class
Lifting speed24m/minWorking temperature-30℃~+60℃Protection classIP67
Rotation control modeManual/electric (customizable)Rated voltage400V/690V  50Hz/60Hz

Rotation angle360°Rated power4kW

DR12-2500



Product modelDR12-2500Maximum lifting height30mService life25years
Lifting radius2.5m(customizableWire rope diameterφ12mmDead-weight of Crane

950kg

Maximum lifting weight1000kg-1600kgJib typeFixed/Tilted (customizable)Corrosion-proof gradeIndustrial Marine environment CX class
Lifting speed24m/minWorking temperature-30℃~+60℃Protection classIP67
Rotation control modeManual/electric (customizable)Rated voltage400V/690V  50Hz/60Hz

Rotation angle360°Rated power4kW


DR12-5000


Product modelDR12-5000Maximum lifting height30mService life25years
Lifting radius5m(customizable)Wire rope diameterφ12mmDead-weight of Crane

1250kg

Maximum lifting weight1000kg-1600kgJib typeFixed/Tilted (customizable)Corrosion-proof gradeIndustrial Marine environment CX class
Lifting speed24m/minWorking temperature-30℃~+60℃Protection classIP67
Rotation control modeManual/electric (customizable)Rated voltage400V/690V  50Hz/60Hz

Rotation angle360°Rated power5.5kW



*Parameters are only for reference, customized design following the actual use requirements.

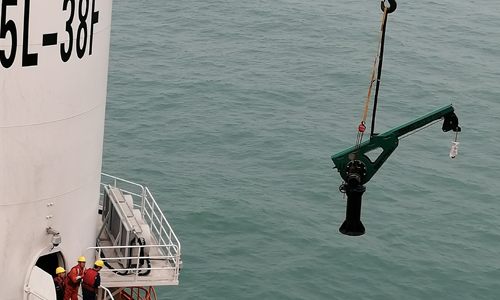

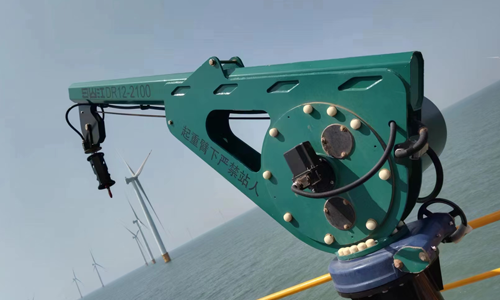

Application case

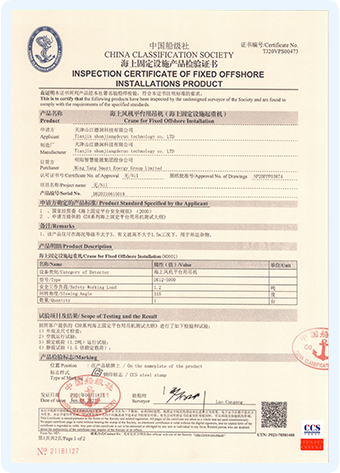

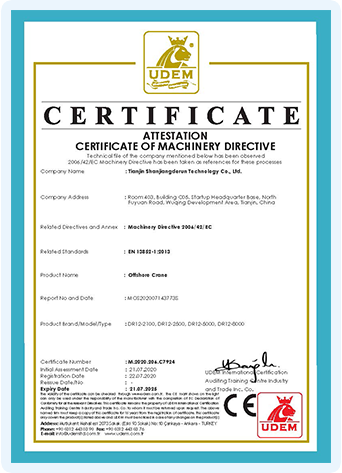

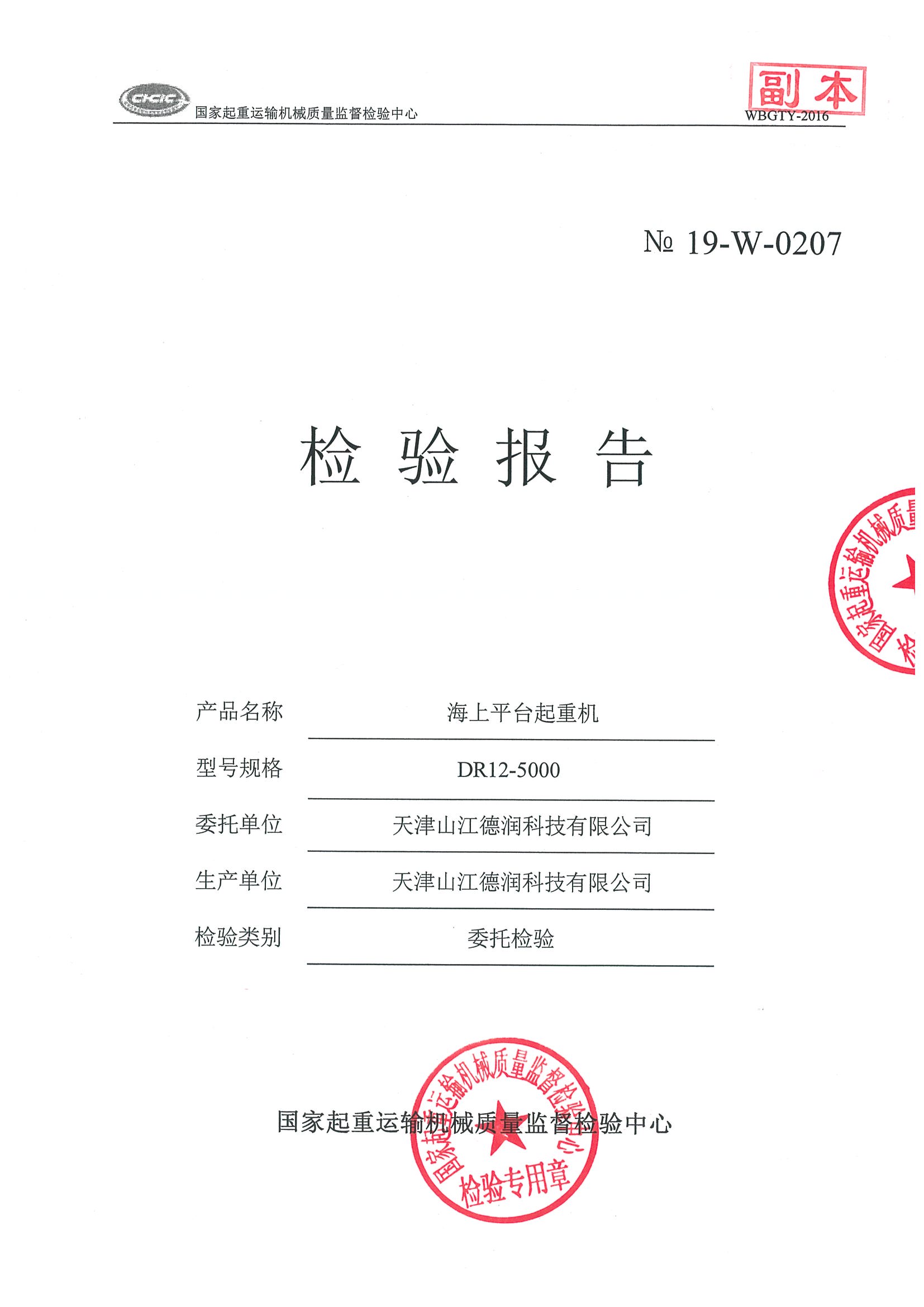

Qualification certificates
